CNC waterjet cutter machine
EAAK Water jet cutting machine application:
Cutting materials are not limited (stainless steel, steel, copper, aluminum and other metals, glass steel, stone, glass, ceramics, plastics, composite materials...), waterjet cutting is currently the most applicable cutting process;
Specification of EAAK CNC water jet cutting machine:(as follows)
Parameters of CNC waterjet cutter working on different materials such as glass,metal,stone(as follows)
Cutting materials are not limited (stainless steel, steel, copper, aluminum and other metals, glass steel, stone, glass, ceramics, plastics, composite materials...), waterjet cutting is currently the most applicable cutting process;
| Metal cutting: | |
| 1 | Decoration of stainless steel,aluminum.iron,brass and other metal cutting process. |
| 2 | Manufacture of machinery and equipment control cabinets such as food machinery,medical machinery,CNC machinery. |

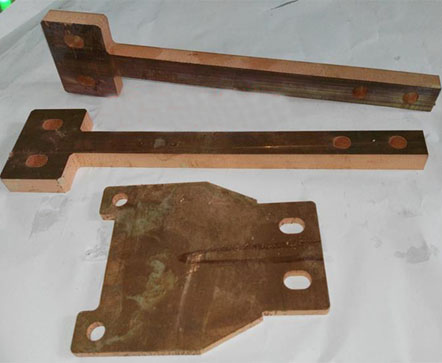

| 3 | The metal parts cutting such as stainlesssteel flange,semi-finished,steel construction, non-ferrous metal and so on. |

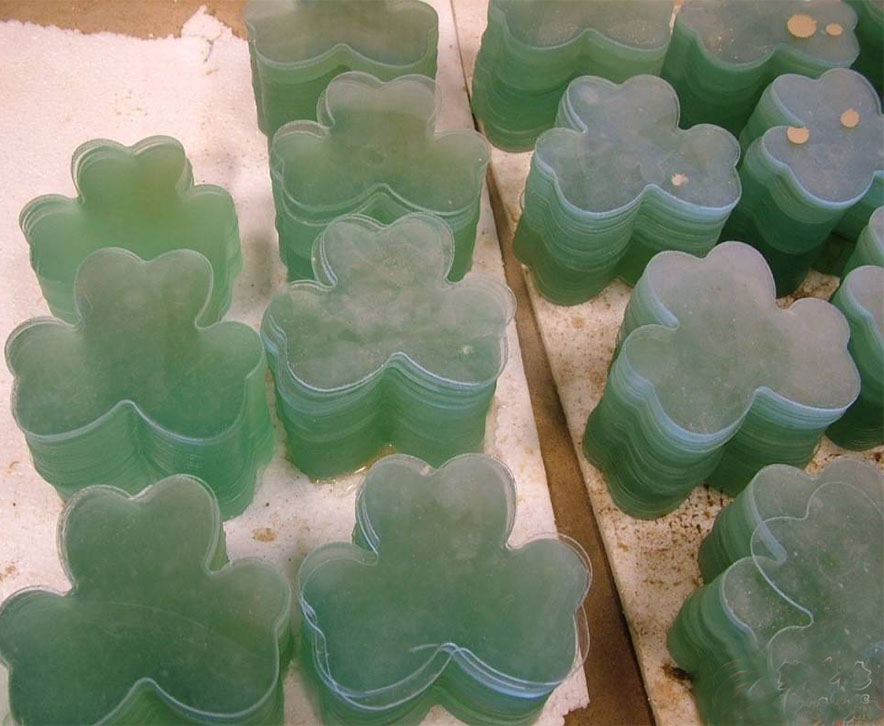

| Glass cutting: | |
| 1 | Gas stove surfaces, range hood,disinfecting cabinet, TV, bathroom products. |
| 2 | Construction and decoration glass,automotive glass. |
| Ceramic and stone cutting: | |
| 1 | Ceramic cutting for decoration and construction. |
| 2 | Marble mosaic,granite mosaicmstone plate cutting. |

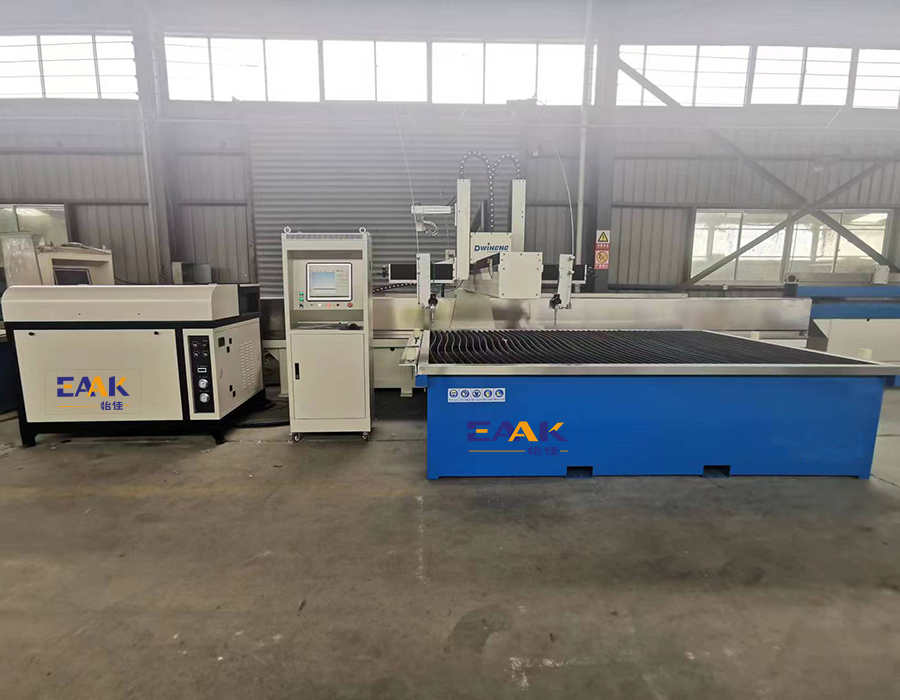

| Model | EK1530 |
| X Y axis Working size | 1500mm*3000mm |
| Z working height | 150mm |
| Cutting Pressure | 420Mpa 37kw UHP pump |
| Control accuracy | 0.01mm |
| Cutting accuracy | 0.1-0.2mm |
| Repositioning Accuracy | 0.05mm |
| Max cutting thickness | 300mm(depends on materials) |
| Max. moving speed | 6000mm/min |
| Power supply | 380V 50Hz |
| Environmental temperature | -10-50°C |
| Max flow rate | 3.7L/min |
| Max oil discharge | 206L/min |
| Max delivery capacity of oil pump | 106L/min |
| Control system | Ncstudio (Shanghai) software IPC controller |
| CAD/CAM software | AutoCAD,ArtCAM |
| Drive motor | Japan Yaskawa servo drive motor |
Parameters of CNC waterjet cutter working on different materials such as glass,metal,stone(as follows)
| Materials | Thickness | Cutting speed (mm/min) | ||
| 380Mpa | 420Mpa | 600Mpa | ||
| Normal glass cutting | 6 mm | 1400-1500 | 2100-2250 | 2520-2700 |
| 8 mm | 690-800 | 1035-1200 | 1242-1440 | |
| 19mm | 400-500 | 600-750 | 950-1150 | |
| Granite panel cutting | 20mm | 260-300 | 390-450 | 468-540 |
| 30mm | 170-200 | 255-300 | 306-360 | |
| Porcelain tile cutting | 10mm | 900-1000 | 1350-1500 | 1620-1800 |
| Marble panel cutting | 10mm | 600-900 | 900-1350 | 1080-1620 |
| 20mm | 350-400 | 526-600 | 630-720 | |
| 30mm | 260-300 | 390-450 | 468-540 | |
| Laminating glass cutting | 21mm | 490-600 | 735-900 | 882-1080 |
| Sponge and foam cutting | 20mm | 6000-7000 | 9000-10500 | 10800-12600 |
| 50mm | 2600-3000 | 3900-4500 | 4680-5400 | |
| 80mm | 1600-2000 | 2400-3000 | 2880-3600 | |
| Steel plate cutting | 10mm | 170-220 | 255-330 | 306-396 |
| 20mm | 75-100 | 113-150 | 135-180 | |
| 30mm | 15-30 | 22-45 | 27-54 | |
| Stainless steel plate cutting | 1 mm | 1000-1200 | 1500-1800 | 1800-2160 |
| 3 mm | 500-600 | 750-900 | 900-1080 | |
| 6 mm | 240-300 | 360-450 | 432-540 | |
| 10mm | 150-180 | 225-270 | 270-324 | |
| 16mm | 85-100 | 128-150 | 153-180 | |
| 20mm | 70-80 | 105-120 | 126-144 | |
| 30mm | 30-40 | 45-60 | 54-72 | |
| Copper plate cutting | 3 mm | 1350-1500 | 2025-2250 | 2430-2700 |
| 5 mm | 700-850 | 1050-1275 | 1260-1530 | |
| 20mm | 160-200 | 240-300 | 288-360 | |
| 30mm | 100-120 | 150-180 | 180-216 | |
| Titanium alloy cutting | 13mm | 100-115 | 150-173 | 180-207 |
| Installation of EAAK water jet cutting machine: | |
| We provide demonstration disk,tool kit,toolbox and some spare parts without charge for customer's self-installation.We also provides 7-10 days training for setting up, operating and maintenance. | |
| Training for EAAK waterjet machine customers: | |
| 1 | Our engineer goes to customer's factory and train onsite.The customer shall afford visa cost, round-trip air-tickets, food & hotel. |
| 2 | Customer come to our company and take free training for 10-15 days. |
 |
 |
 |
 |
 |
 |
